One Kit. Three Engines. Zero Stress!

“It is a cost-effective alternative to OEM lifting systems. It provides everything needed for lifting Yamaha and Mercury outboard motors during jack plate installations.” - John T.

Why Get Our Outboard Universal Lifting System?

✅Perfect Fit: Most lifting tools only support one brand or engine type, which forces boat owners to buy multiple tools or the wrong ones. This kit eliminates the guesswork by including all three essential adapters. Whether you're lifting a Yamaha V8 or a Mercury Verado, you’ll have the right fit in one set.

✅Strong and Safe: This system supports up to 1,000 lbs. It gives you the strength and peace of mind needed to lift heavy outboards safely during service or installation.

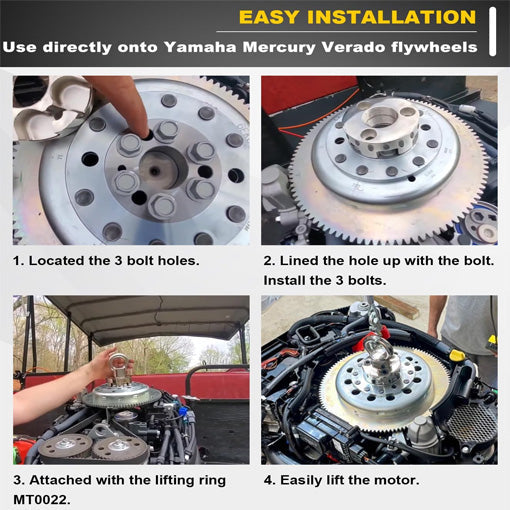

✅Easy to Install: The adapters screw directly into the flywheel threads with no extra steps. You save time and avoid frustration when lifting or reinstalling your motor.

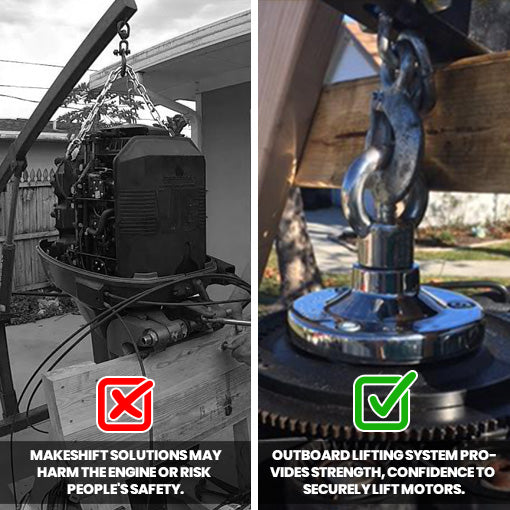

✅Easy to Install: The adapters screw directly into the flywheel threads with no extra steps. You save time and avoid frustration when lifting or reinstalling your motor. Yamaha and Mercury often leave out lifting eyes in newer motors. That makes lifting tricky and risky. These also give you a solid, secure lift point designed specifically for motors without built-in lifting hooks.

📓FREQUENTLY ASKED QUESTIONS

Q: What is the safe working load of this lifting system?

A: The lifting system is made of high-strength steel with a 1,000 lb safe working load.

Q: Which outboard motor models is this lifting system compatible with?

A: The lifting system is compatible with Yamaha 5.3 V8, 4.2 V6, F200B, F115B, and Mercury outboards.

⚙️ Specifications:

• Color: Silver

• Item Weight: 6.53 lbs.

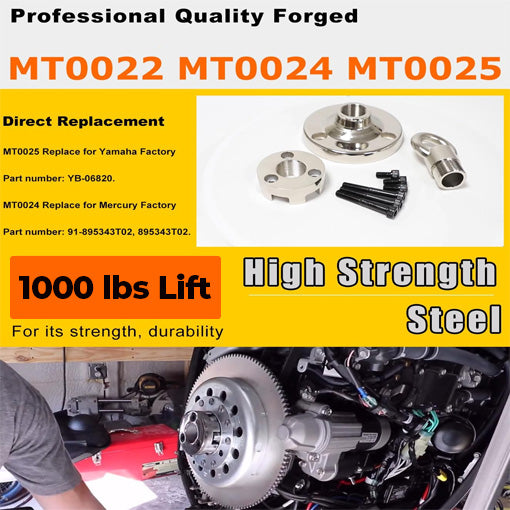

• Material: Steel

• Load capacity: 1,000 lbs.

• Thread Sizes:

• MT0022: 1.5" x 16 TPI (Threads Per Inch)

• MT0024: Specific to Mercury Verado engines

• MT0025: Specific to Yamaha outboards

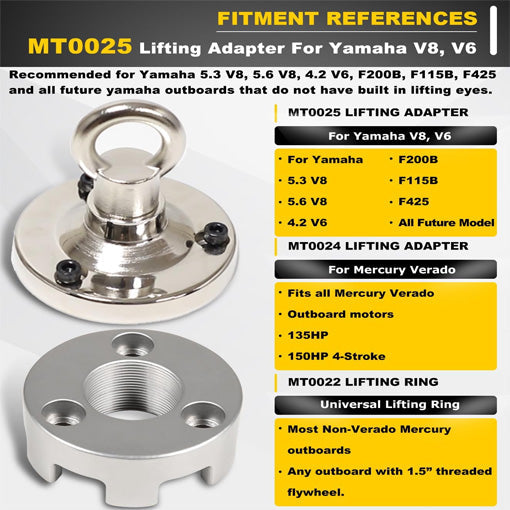

• Compatibility:

• MT0025: Yamaha 5.3 V8, 5.6 V8, 4.2 V6, F200B, F115B, F425, and all future Yamaha outboards without built-in lifting eyes.

• MT0024: All Mercury Verado and 135HP, 150HP 4-Stroke Outboard motors.

• MT0022: Suitable for most non-Verado Mercury outboards and any outboard with a 1.5” threaded flywheel.

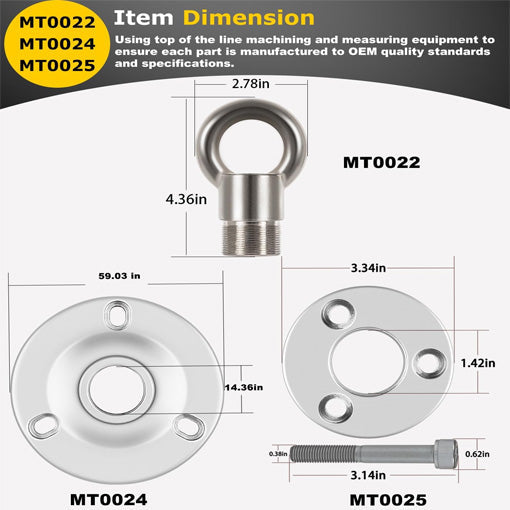

• Product dimensions: 7.76 x 6.81 x 3.46 inches

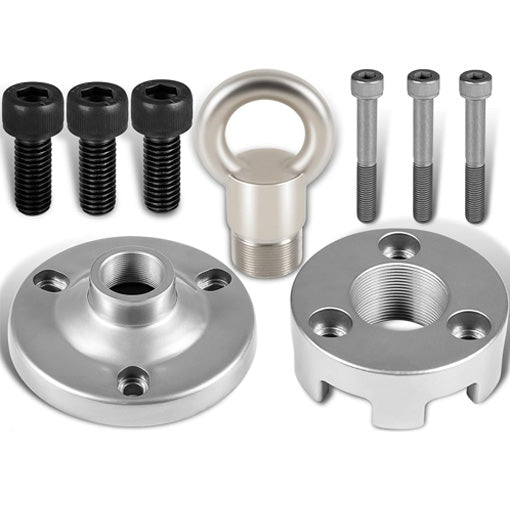

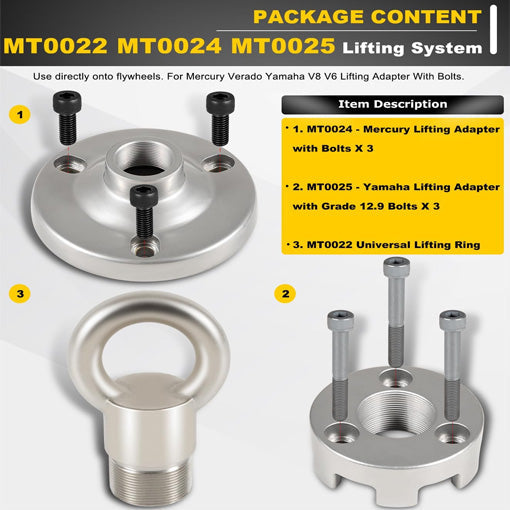

📦Package Inclusions:

• 1x MT0024 Lifting Adapter with bolts

• 1x MT0025 Lifting Adapter with bolts

• 1x MT0022 Lifting Ring
