Catch HVAC Vibration Issues Early!

“This tool is a must-have for HVAC maintenance. It spots vibration issues in motors and fans that we wouldn’t notice until breakdown. The dual buttons and magnetic probe make testing easy, even inside tight HVAC units. Saved us from costly repairs!” – Tom L.

Why Get Our Digital Vibrometer?

✅ Stops Hidden Vibration Damage: Hidden vibrations in HVAC and other systems often go unnoticed until they cause noisy operation or damage. This handheld analyzer measures acceleration up to 199.9 m/s² (peak), velocity, and displacement with high accuracy (±10%)—letting you detect issues early, reduce noise, and keep components performing efficiently.

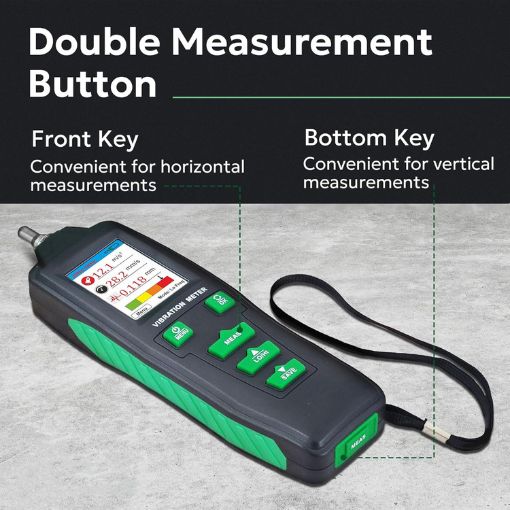

✅ Flexible and Precise Readings: Easily switch between high frequency (1 kHz–4 kHz) and low frequency (20 Hz–1 kHz) modes to capture a wide range of vibration signals. Dual measurement buttons let you quickly switch between vertical and horizontal tests. Comes with both long and short magnetic probes with spiral interfaces for easy attachment to different surfaces and measurement conditions.

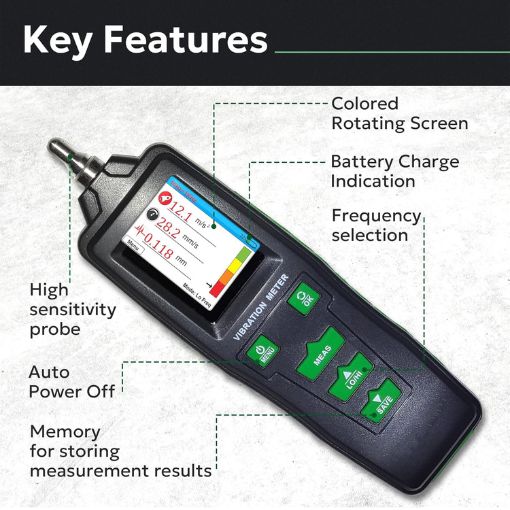

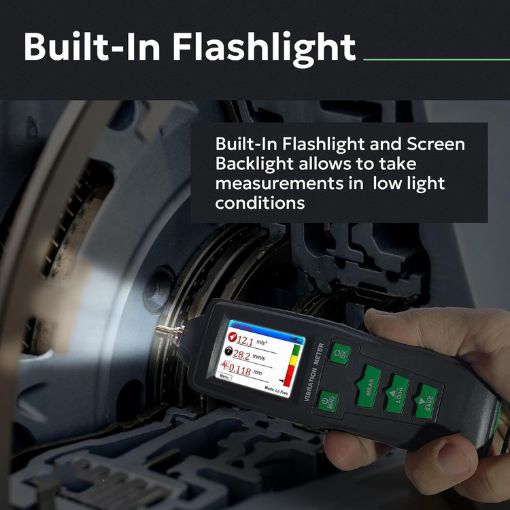

✅ Ready for Fields: Features a color LCD with screen rotation, built-in flashlight, and backlit display for clear readings in dim or cramped spaces. Stores up to 500 measurement results to track equipment health over time, ensuring efficient diagnostics during field service.

📓FREQUENTLY ASKED QUESTIONS

Q: Can it measure vibrations in tight or hard-to-reach spaces?
A: Yes, its compact size, magnetic probes, backlit display, and built-in flashlight make it perfect for measurements in confined or poorly lit areas.

Q: Besides HVAC, what other fields can this vibrometer be used for?
A: It’s ideal for use in mechanical production, electrical energy, metallurgy, aircraft manufacturing, and other industries requiring precise vibration analysis.

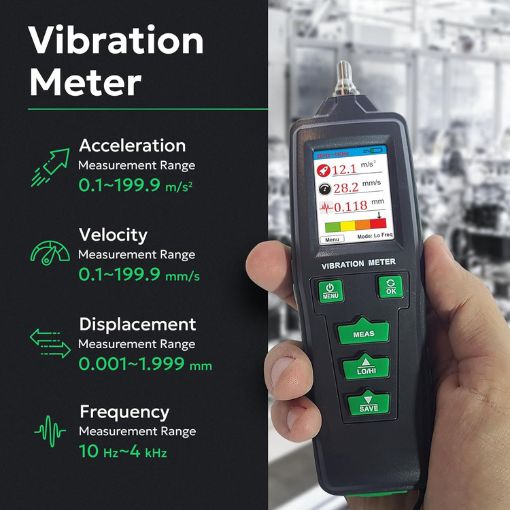

⚙️ Specifications:

• Acceleration Measurement Range: 0.1–199.9 m/s² (peak)
• Velocity Measurement Range: 0.1–199.9 mm/s (real-time)
• Displacement Measurement Range: 0.001–1.999 mm (peak-to-peak)
• Frequency Ranges: High Frequency: 1 kHz – 4 kHz (HI), Low Frequency: 10 Hz – 1 kHz (LO) for acceleration, velocity, and displacement
• Data Storage Capacity: 500 readings (5 groups × 100 readings each)
• Power Supply: 2 × 1.5V AAA batteries
• Operating Temperature: 0 – 40°C (32 – 104°F)
• Humidity Range: 30% – 90% (non-condensing)
• Probes Included: Long and short probes
• Product Dimensions: 7.1 × 2.1 × 1.2 in (180 × 54 × 30 mm)

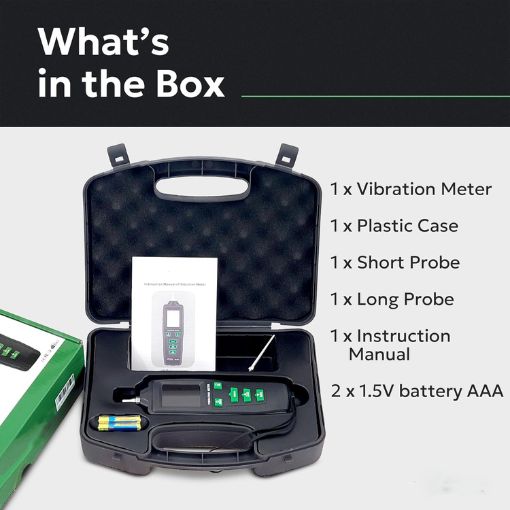

📦Package Inclusion:

• 1 x Vibration Meter
• 1 x Plastic Case
• 1 x Short Probe
• 1 x Long Probe
• 1 x Instruction Manual
• 2 x 1.5V Battery AAA
